Altero White Switches

• Automation Grade
• Automatic

• Circuit Type
• Normally Open (NO)

• Color
• Black

• Contact Resistance
• <100

• Current Rating
• 1mA

• Finish Type
• Matte

• Insulation Resistance
• >100M at 500VDC

• Material
• Polyester (PET)

• Max. Current
• 1mA

• Max. Voltage
• 30V DC

• Mechanical Life
• More than 1 million operations

• Mounting Type
• Adhesive Mounting

• No Of Poles
• 2

• Number of Module
• Single strip

• Operating Temperature
• -20C to +70C

• Product Type

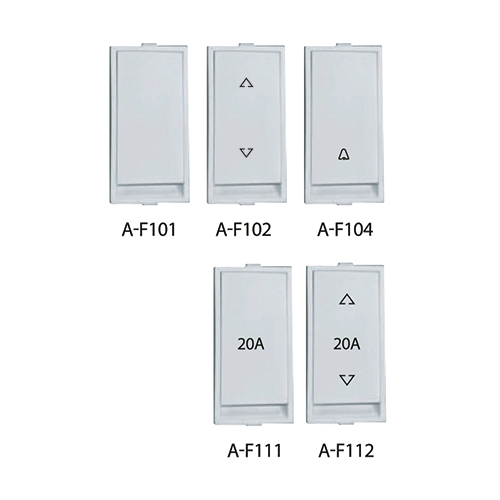

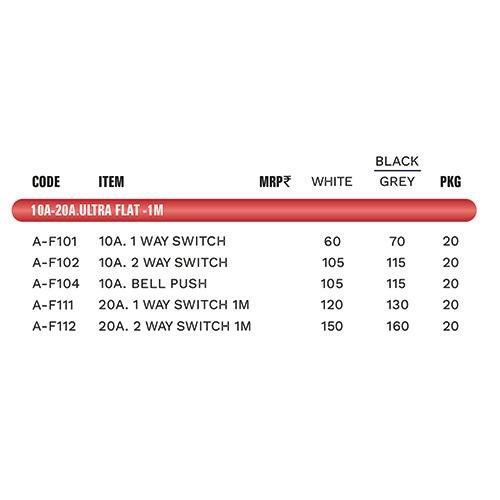

• Ultra Flat 1m

• Protection Level
• IP65

• Rated Voltage
• 24V DC

• Response Time
• <10ms

• Size
• 1m x 13mm x 1.4mm

• Stoke
• 1 Million Operations

• Temperature Range
• -20C to +70C

• Weight
• Approx. 16g (per meter)

• Automation Grade
• Manual

• Circuit Type
• 1 Way

• Color
• White

• Contact Resistance
• <10 m

• Current Rating
• 6A / 10A

• Finish Type
• Glossy

• Insulation Resistance
• 100 M at 500V DC

• Material
• Polycarbonate/Brass

• Max. Current
• 10A

• Max. Voltage
• 250V AC

• Mechanical Life
• >50,000 operations

• Mounting Type
• Flush Mount

• No Of Poles
• Single Pole

• Number of Module
• 1 Module

• Operating Temperature
• -5C to 55C

• Product Type
• K Elite Switch 1m

• Protection Level
• IP20

• Rated Voltage
• 240V AC

• Response Time
• Instantaneous

• Size
• 1 Module

• Stoke
• 40,000 operations minimum

• Temperature Range
• -5C to 55C

• Weight
• 19g

• Automation Grade
• Manual

• Circuit Type
• Single Phase

• Color
• White

• Contact Resistance
• 50m

• Current Rating
• 6A

• Finish Type
• Matte

• Insulation Resistance
• 100M

• Material
• Polycarbonate, Copper

• Max. Current
• 6A

• Max. Voltage
• 250V AC / 300V DC

• Mechanical Life
• 10,000 Operations

• Mounting Type
• Modular

• No Of Poles
• 1

• Number of Module
• 1M

• Operating Temperature
• -5C to +40C

• Product Type

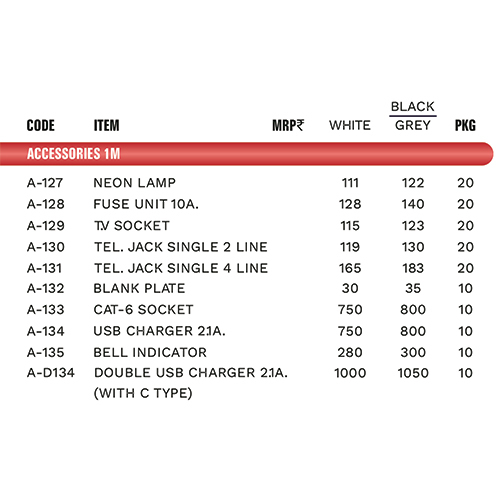

• Accessories 1M

• Protection Level
• IP20

• Rated Voltage
• 250V

• Response Time
• Instantaneous

• Size
• 1 Module

• Temperature Range
• -5C to +40C

• Weight
• 16g

• Automation Grade
• Manual

• Circuit Type
• SPDT

• Color
• Grey

• Contact Resistance
• 25 m (initial)

• Current Rating
• 10A

• Finish Type
• Textured

• Insulation Resistance
• 100 M (at 500VDC)

• Material
• Engineering Plastic/Metal Parts

• Max. Current
• 10A

• Max. Voltage
• 250V AC/DC

• Mechanical Life
• >10 Million Operations

• Mounting Type
• Panel Mounting

• No Of Poles
• Single Pole

• Number of Module
• 2M

• Operating Temperature
• -10C to 60C

• Product Type

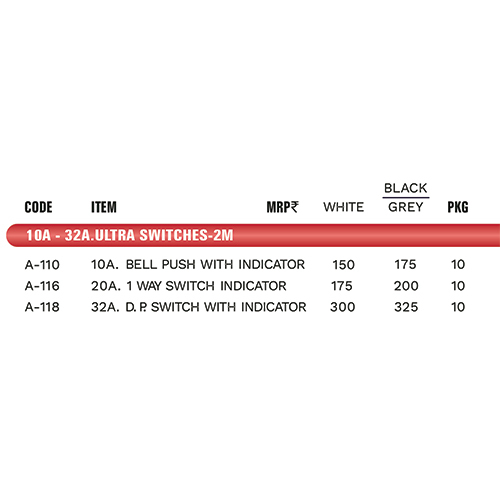

• Ultra Switches 2m

• Protection Level
• IP65

• Rated Voltage
• 250V AC/DC

• Response Time
• <10 ms

• Size
• Standard Modular Size

• Stoke
• 2 mm

• Temperature Range
• -10C to 60C

• Weight
• Approx. 45 g

• Automation Grade
• Manual

• Circuit Type
• AC

• Color
• White/Light Grey

• Contact Resistance
• 2 m

• Current Rating
• 6A, 10A, 16A, 20A, 32A, 40A, 63A

• Finish Type
• Matte finish

• Insulation Resistance
• 100 M

• Material
• High-grade flame retardant plastic

• Max. Current
• 63A

• Max. Voltage
• 240/415V AC

• Mechanical Life
• > 20,000 operations

• Mounting Type
• DIN Rail

• No Of Poles
• Single Pole (SP), Double Pole (DP)

• Number of Module
• 1M (Single), 2M (Double)

• Operating Temperature
• -5C to +40C

• Product Type

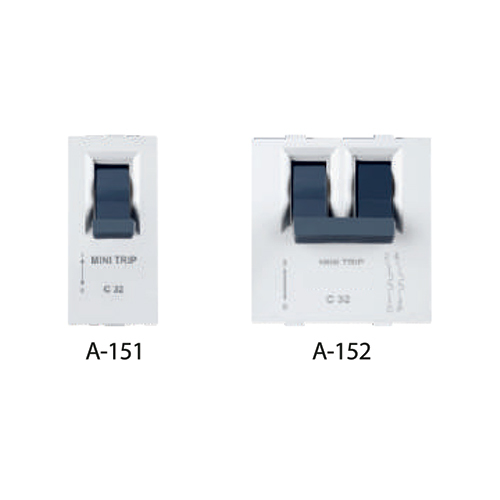

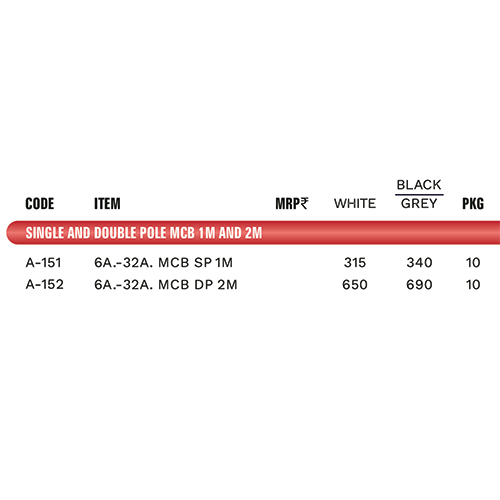

• Miniature Circuit Breaker (MCB)

• Protection Level
• IP20

• Rated Voltage
• 240V/415V AC

• Response Time
• < 3ms

• Size
• Standard 1M/2M modules

• Stoke
• Silver alloy contacts

• Temperature Range
• -5C to +55C

• Weight
• Approx. 130g (1M), 250g (2M)

• Automation Grade
• Manual

• Circuit Type
• Rotary switch

• Color
• White

• Contact Resistance
• Less than 30 m

• Current Rating
• 2A

• Finish Type
• Glossy finish

• Insulation Resistance
• More than 100 M at 500V DC

• Material
• Polycarbonate Body with Metal Components

• Max. Current
• 2A (for fan)

• Max. Voltage
• 250V AC

• Mechanical Life
• More than 10,000 cycles

• Mounting Type
• Flush mounting/Wall mounted

• No Of Poles
• Single Pole

• Number of Module
• 2 Module

• Operating Temperature
• -10C to 45C

• Product Type
• Dimmer & Fan Regulator

• Protection Level
• IP20

• Rated Voltage
• 220-250V AC

• Response Time
• Instantaneous

• Size
• Modular: 2 Module (standard) / Compact design

• Stoke
• Continuous rotary movement

• Temperature Range
• -10C to 45C

• Weight
• Approximately 50 grams

• Automation Grade
• Industrial

• Circuit Type
• Single Circuit

• Color
• Black

• Contact Resistance
• 25m (Initial)

• Current Rating
• 5A

• Finish Type
• Matte

• Insulation Resistance
• 100M at 500V DC

• Material
• Thermoplastic (Body), Copper Alloy (Contacts)

• Max. Current
• 5A

• Max. Voltage
• 250V AC/DC

• Mechanical Life
• 1,000,000 operations

• Mounting Type
• Cable Mount

• No Of Poles
• 2

• Number of Module
• 1

• Operating Temperature
• -25C to +70C

• Product Type
• Limit Switch Accessories

• Protection Level
• IP65

• Rated Voltage
• 250V AC/DC

• Response Time
• 10ms

• Size
• Standard 2m Cable Assembly

• Stoke
• 2m

• Temperature Range
• -25C ~ 70C

• Weight
• Approx. 120g

• Automation Grade
• Manual/Standard

• Circuit Type
• 1 Way

• Color
• White

• Contact Resistance
• 50 m

• Current Rating
• 6A

• Finish Type
• Glossy

• Insulation Resistance
• 100 M at 500V DC

• Material
• Polycarbonate (front plate), Brass (internal parts)

• Max. Current
• 6A

• Max. Voltage
• 250V AC

• Mechanical Life
• >40,000 operations

• Mounting Type
• Flush Mount

• No Of Poles
• Single Pole

• Number of Module
• 1 Module

• Operating Temperature
• -5C to +40C

• Product Type

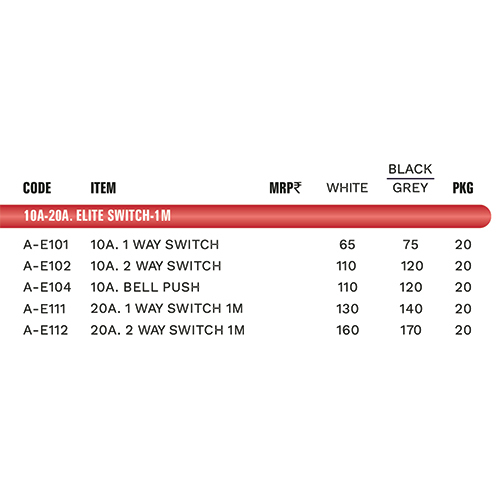

• Elite Switch 1m

• Protection Level
• IP20

• Rated Voltage
• 240V AC, 50Hz

• Response Time
• Instantaneous mechanical

• Size
• Modular 1m

• Stoke
• Standard mechanical rocker stroke

• Temperature Range
• -5C to +40C

• Weight
• 28g approx.

• Automation Grade
• Manual

• Circuit Type
• Normally Open (NO)

• Color
• Black / Grey

• Contact Resistance
• < 200 m

• Current Rating
• Max 300 mA

• Finish Type
• Smooth PVC

• Insulation Resistance
• >100 M at 500 VDC

• Material
• High Grade PVC, Copper Alloy

• Max. Current
• 300 mA

• Max. Voltage
• 24V DC/AC

• Mechanical Life
• >1 million operations

• Mounting Type
• Surface Mount, Adhesive or Screw

• No Of Poles
• Single Pole

• Number of Module
• Single Module

• Operating Temperature
• -20C to +60C

• Product Type

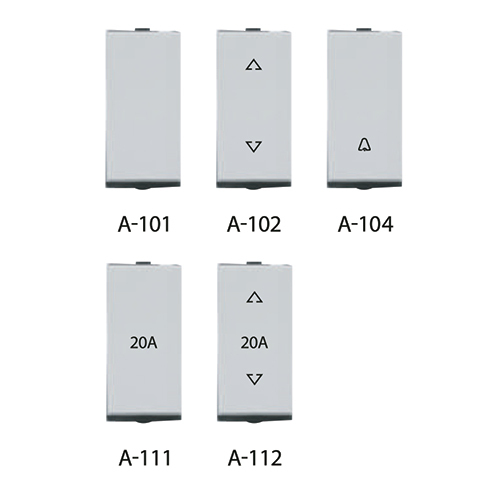

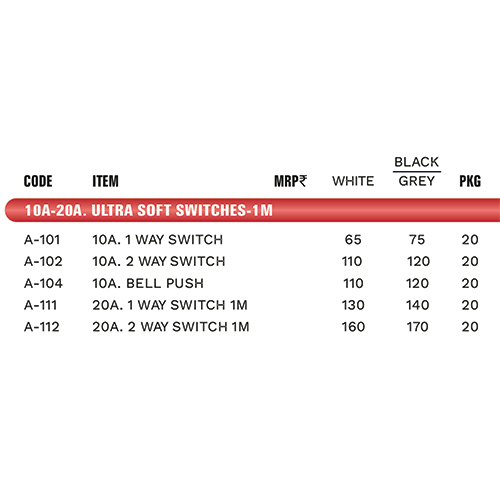

• Ultra Soft Switches 1m

• Protection Level
• IP67

• Rated Voltage
• 24V DC/AC

• Response Time
• <50 ms

• Size
• 1 meter length, customizable width

• Stoke
• Soft touch, approx. 0.3 mm travel

• Temperature Range
• -20C to +60C

• Weight
• Approx. 180 g/meter

• Automation Grade
• Manual

• Circuit Type
• Single Phase

• Color
• White

• Contact Resistance
• 30 m

• Current Rating
• 25A

• Finish Type
• Glossy

• Insulation Resistance
• 1000 M at 500V DC

• Material
• Flame Retardant Polycarbonate

• Max. Current
• 25A

• Max. Voltage
• 250V AC

• Mechanical Life
• > 10,000 operations

• Mounting Type
• Flush Mount

• No Of Poles
• 2 Pole + Earth

• Number of Module
• 2 Module

• Operating Temperature
• -5C to +60C

• Product Type

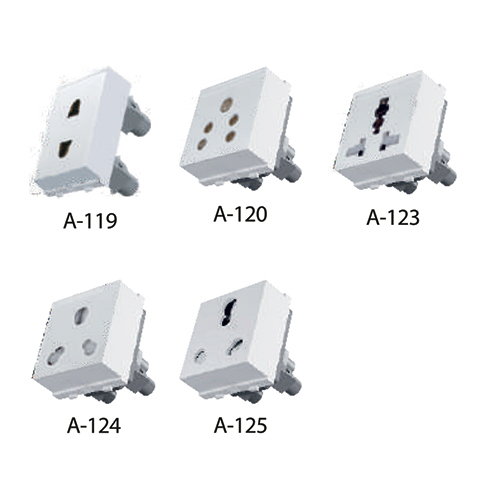

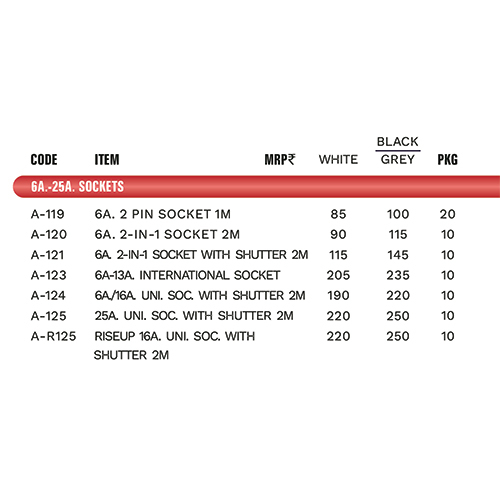

• 25A Power Socket

• Protection Level
• IP20

• Rated Voltage
• 250V AC

• Response Time
• Instant

• Size
• 86mm x 86mm

• Stoke
• Smooth Switch Mechanism

• Temperature Range
• -5C to +60C

• Weight
• 150g (approx.)

• Automation Grade
• Manual

• Circuit Type
• 1-way

• Color
• White

• Contact Resistance
• 20 m

• Current Rating
• 10A

• Finish Type
• Glossy

• Insulation Resistance
• 100 M at 500 V DC

• Material
• Polycarbonate, Brass Contacts

• Max. Current
• 10A

• Max. Voltage
• 250 V AC

• Mechanical Life
• More than 50,000 cycles

• Mounting Type
• Flush Mount

• No Of Poles
• Single Pole

• Number of Module
• 2

• Operating Temperature
• -5C to 55C

• Product Type
• Modular Switch

• Protection Level
• IP20

• Rated Voltage
• 250 V AC

• Response Time
• Instant (Manual Switch)

• Size
• Standard 2M (modular slot)

• Stoke
• 2m

• Temperature Range
• -5C to 55C

• Weight
• Approx 45 grams
